Small Cheap Wine Glass Goblet Glass Bottle Co2 Laser Engraving Machine
Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.
Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc
Materials Can work With: Organic glass, acrylic board (the paulownia, lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials.
Laser Head with infrared positioning & auto focusing
Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

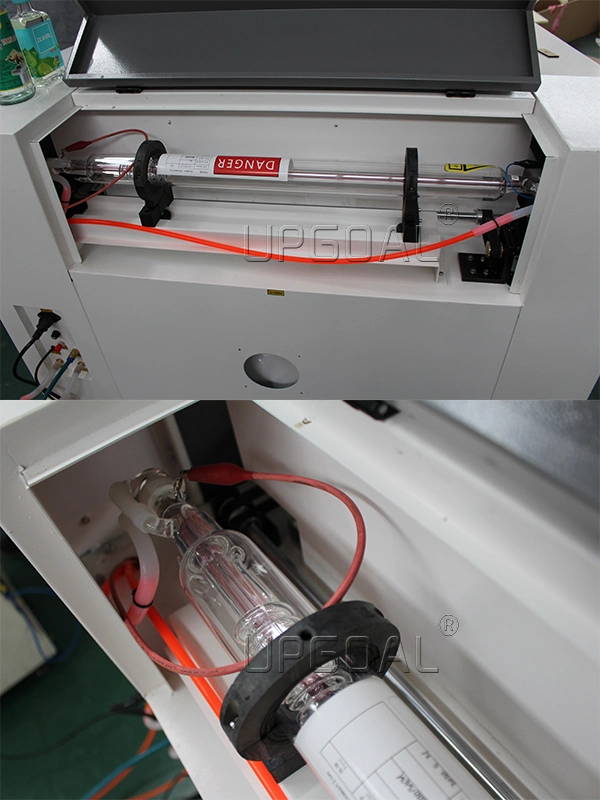

Adopted stable China high quality 50W Co2 laser tube, long life time.
Honey Comb Table: applicable to various soft materials with good adsorption effect and low reflection ratio.
Knife Strip Table: With oxidation treatment and low reflection ratio Ensured cutting quality
Auto Lifting Table for more thickness materials: with 180mm up-down distance.
Beam Path System
Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.
Imported High precision, low friction force and stand wear and Taiwan CSK linear guide rails and blocks with 3M belt ensured stable transmission, lower noise.
Advanced USB port Ruida RDC6445G DSP control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .
With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.
Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.
Rationalized placement of the electronic parts. Optimized heat dissipation effect.
Industrial chiller CW-3000, ensuring the laser tube long time continuous working.
Roller type for cylinder engraving, no dimaeter limitation, for all kinds of cylinder engraving, sepcially for goblet.
With moving holder
The holder with moving wheels, convenient for machine moving, one man can easy to move it
|Effective working area||600*400mm|
|Laser Type||Co2 sealed-off laser tube|
|Laser tube power||50W|
|Working table||Honey comb and knife strip, double working table|
|Lifting table||Auto lifting|
|Driver mode||Stepper motor and Driver, Yako brand|
|Guide rail||Linear square guide rail ( CSK,Taiwan)|
|Transmission||3M Belt transmission|
|Laser output control||1-100% software setting|
|Control system||RuiDa RDC6455G|
|Control software||RDWorks V8|
|Design software when delivery||CorelDraw|
|Control panel||DSP offline|
|Resolution accuracy||< 0.01mm|
|Location precision||< 0.01mm|
|Highest scanning accuracy||2500DPI|
|Type of cooling||Industrial chiller CW-3000|
|Water protection system||Yes|
|Blow-off system||Air pump and air fan|
|Biggest scanning accuracy||2500DPI|
|Working temperature||0-45 °C|
|Operating humidity||5-95% (without condensed water)|
|Supporting picture format||PLT,DST,DXF,BMP, DWG,AI,LAS,etc|
|Voltage||AC 220V/110V, 50/60Hz, single phase|
Packing( one plywood case)
